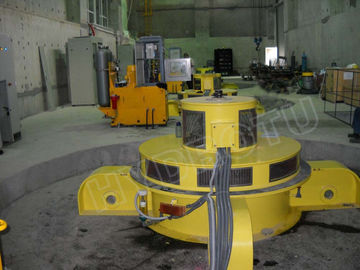

100KW Kaplan Hydro Turbine

 100KW - 30MW Low Head Kaplan Hydro Turbine / Kaplan Water turbine with Fixed Blades/ Adjustable Blades

Descrition:

The Kaplan Turbine(axial-flow turbine) for low head from 2m to 70m. This type of turbine is mostly suitable for hydropower stations with low water head and big flow.

lts feature is that the water flow passes through the runner axially. The axial-flow turbine can be classified into two forms according to the runner construction: one is fixed blades (Propeller) for small variation of head and power, the other is movable blades (Kaplan) for large variation of head and power.

The kaplan turbine with vertical shaft arrangement , with three types as open flume, pressure flume, and seal off (concrete spiral case).

Generally, Kaplan turbine is composed of distributor, guide vane, runner, draft tube etc.

Applications:

1.     Water head: from 2---70m

2.      Power: 0.1MW-----30MW

3.     Frequency: 50/ 60hz

4.     Output Type: 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase,

 If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Specifications:

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
