Pelton Wheel / Turbine Runner with Forge CNC Machine for Power 2MW - 20MW

Pelton Wheel / Turbine Runner with Forge CNC Machine for Power 2MW - 20MW

    • Pelton Wheel / Turbine Runner with Forge  CNC Machine for Power 2MW - 20MW
    • Pelton Wheel / Turbine Runner with Forge  CNC Machine for Power 2MW - 20MW
    • Pelton Wheel / Turbine Runner with Forge  CNC Machine for Power 2MW - 20MW
    • Pelton Wheel / Turbine Runner with Forge  CNC Machine for Power 2MW - 20MW
    • Pelton Wheel / Turbine Runner with Forge  CNC Machine for Power 2MW - 20MW
  • Pelton Wheel / Turbine Runner with Forge  CNC Machine for Power 2MW - 20MW

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Hydrotu
    Certification: CE
    Model Number: Pelton Turbine Runner

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden Case( Export Standard Package)
    Delivery Time: Negotiable
    Payment Terms: L/C,T/T
    Contact Now
    Detailed Product Description
    Turbine Type: Pelton Water Turbine Material: Stainless Steel
    Water Head: 100m-800m Capacity: 2MW-20MW

    Pelton Turbine Runner with Forge + CNC Machine for Power 2MW - 20MW



    Descrition:



    The Pelton turbine is widely used in hydropower station with the heads from 80-1000m.

    The Pelton wheel is like a circular disk mounted on the rotating shaft . This circular disk have some buckets, placed at equal spacing around its circumference. Nozzles are arranged around the wheel such that the water jet emerging from a nozzle is tangential to the circumference of the wheel.

    Our pelton runner used high strength stainless steel material, with Cast machining or Forge CNC machining, it is have a good profile and high efficiency.



    Applications:

    1.     Water head:  80m -- 1000m

    2.     Power: 0.5MW -- 20MW

    3.     Machining type: Cast abrading or monoblock Forge CNC

    4.     Diameter: below 2.5m



    If you are interest with the Francis turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



    We can offer pelton turbine runner above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.



    Specifications:

      Type

      Cast machining/ Forge CNC machining

      Water head

       80m -- 1000m.

      Runner diameter

      Below 2.5m

      Runner material

      Stainless steel (0Cr13Ni4Mo)

      Cast machine/Forge + CNC machine

      Corollary equipment

      Pelton hydro turbine





    Competitive Advantage:

    HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


    With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


    HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

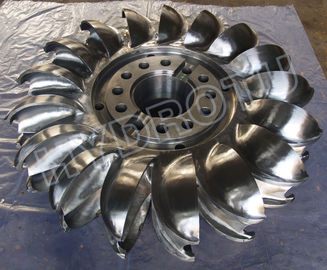

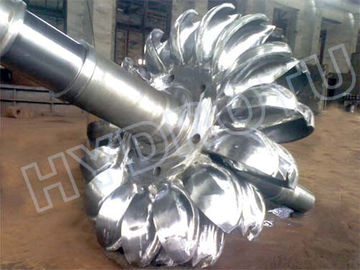

    Pelton Turbine Runner Forged CNC Machine Progress
