Product Details:
|
Type: | Horizontal/vertical Francis Turbine | Water Head: | 10m -- 300m |
---|---|---|---|
Installation Capacity: | 0.1MW-- 20MW | Runner Material: | Stainless Steel (0Cr13Ni4Mo) |
Generator Type: | Synchronous Generator | Auxiliary Equipment: | Governor, Inlet Valve, Unit Side Panel, Excitation System |
Highlight: | water turbine runners,water turbine runner |

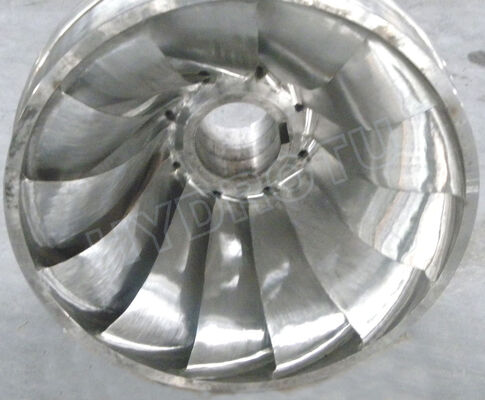

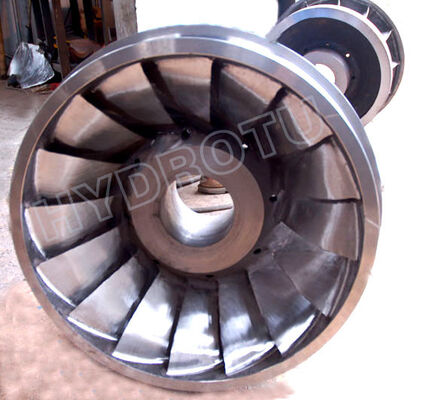

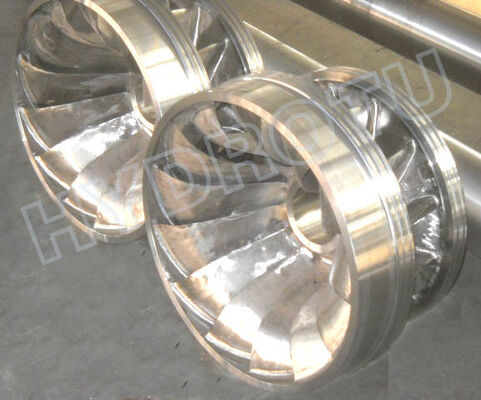

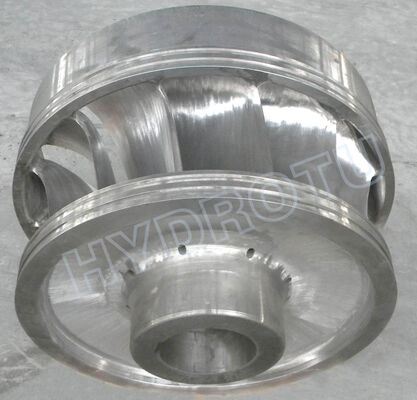

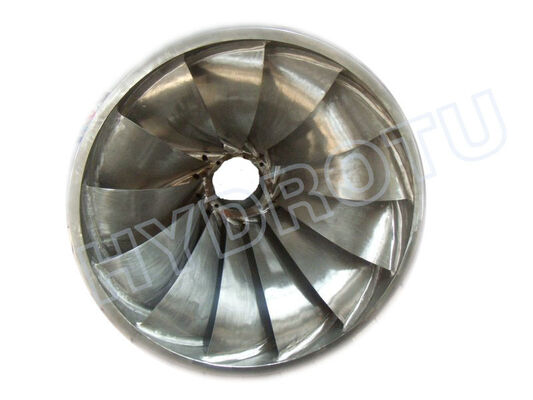

High Head Francis Turbine Runner with Vertical And Horizontal Shaft
Descrition:
Francis turbines are the most common water turbine in use today.
The Francis type turbine is mostly suitable for hydropower stations with medium or high head from 10m to 300m. They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.
lts feature is that the water flow enters the runner inward in a radial direction , changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc. Hydoru manufacture Francis runner have a good efficiency and cavitation performance.
Applications:
They operate in a water head range of 10 to 300 meters and are primarily used for electrical power production. The power output generally ranges from 100KW to 750MW.
Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small francis turbine always arranged with horizontal shaft, but it is not absolute.
we adopt the horizontal Francis with capacity below 7MW. And the vertical Francis with capacity below 20MW.
Specifications:
Type |
Horizontal/vertical Francis turbine |
Water head |
10m -- 300m. |
Installation capacity |
0.1MW-- 20MW |
Runner material |
Stainless steel (0Cr13Ni4Mo) |
Generator type |
synchro generator |
Auxiliary Equipment |
Governor, Inlet Valve, unit side panel, excitation system |
Competitive Advantage:
HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.
With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.
HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
