Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station

Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station
Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station

Large Image :  Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Francis turbine runner
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station

Description
Turbine Type: Francis Water Turbine Runner Material: Stainless Steel
Water Head: 10m-300m Capacity: 0.1mw-20mw
High Light:

water turbine runners

,

water turbine runner

Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW



Descrition:

The Francis  turbine is mostly suitable for hydropower stations with medium or high head from 10m to 300m. They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.

lts feature is that the water flow enters the runner inward in a radial direction , changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc. Hydoru manufacture Francis runner have a good efficiency and cavitation performance.

 Normally, we adopt the horizontal Francis turbine with capacity below 5MW, runner diameter below 90cm. And the vertical Francis turbine with capacity below 20MW.



Applications:

Francis turbines are the most common water turbine in use today.

They operate in a water head range of 10 to 300 meters and are primarily used for electrical power production. The power output generally ranges from 100KW to 750MW.

Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small francis turbine always arranged with horizontal shaft, but it is not absolute.



Specifications:



  Type

  Horizontal/vertical Francis turbine

  Water head

   10m -- 300m.

  Installation capacity

  From 0.1MW to 20MW

  Runner material

  Stainless steel (0Cr13Ni4Mo)

  Generator type

  synchro generator

  Auxiliary Equipment

  Governor, Inlet Valve, unit side panel, excitation system



Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

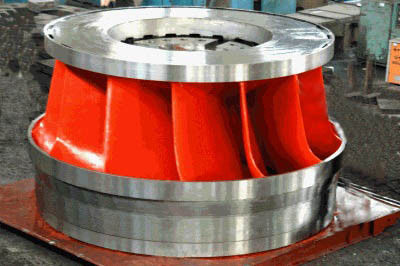

Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station 0

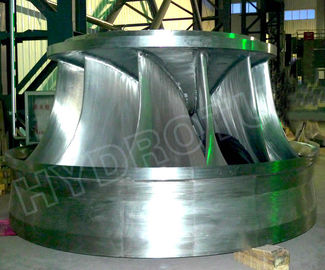

Horizontal / Vertical Francis Turbine Runner for Capacity 100KW - 20MW Hydropower Station 1
