100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m

100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m
100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m 100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m 100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m 100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m 100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m

Large Image :  100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Horizontal kaplan turbine, S type Water Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m

Description
Turbine Type: S Type Tubular Turbine Water Head Range: 5m-20m
Capacity: 100KW-4000KW Runner Blades Material: Stainless Steel
High Light:

low head hydro turbine

,

low head water turbine

100kw - 10MW Horizontal Shaft S Type Turbine with Large Discharge , Low Water Head From 2m To 20m



Applications:



1.     Water head: from 2m to 20m

2.      Capacity: 100kw to 10MW

3.     Runner diameter: 0.4 to 5m

4.     Frequency: 50hz or 60hz

5.     Output Type: 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase,



If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Specifications:



Type

S type turbine with fixed blades/ movable blades

Water head

From 2m to 20m.

Installation capacity

From 100KW to 10MW

Runner blades material

Stainless steel (0Cr13Ni4Mo)

Generator type

Synchro generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system







Descrition:



S type turbine is suitable for heads from 2m to 20m and large discharge hydropower station.

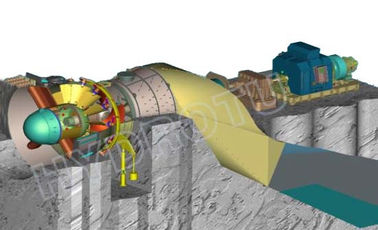

S-type tubular turbine is Available in versions of Horizontal Kaplan, also called S-type horizontal Kaplan. lts feature is that the water flow is axial throughout the passage from the inlet to the outlet, so that the passage is a straight conduit essentially.The turbine shaft passes out of the tube at the point where the tube changes direction, installation is ether with the transfer belt or directly connected to the generator. This modern turbine is characterized by high efficiency in a broad band of flow rates.

S-type turbine is also consist of fixed runner blades and movable runner blades.



Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.



With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.



HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
