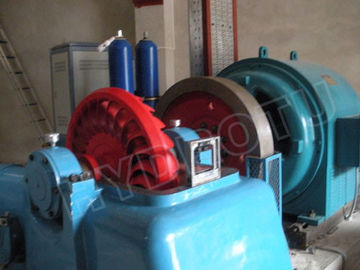

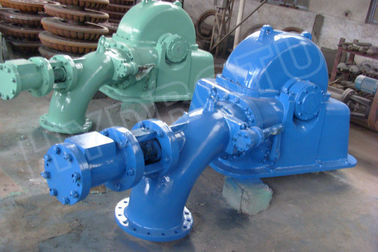

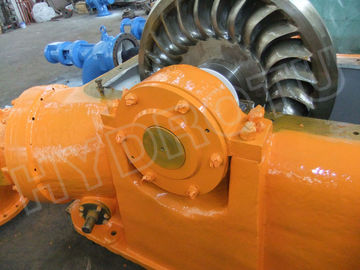

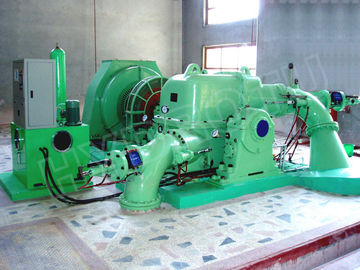

Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles

Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles
Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles

Large Image :  Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Turgo tubine, Turgo Water Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

Small Horizontal Shaft Impulse water Turbine/Turgo Hydro Turbine with one / Two Nozzles

Description
Turbine Type: Horizontal Turgo Turbine Runner Material: Stainless Steel 0Cr14Ni4Mo
Water Head: 50m-300m Capacity: 100KW-3000KW
High Light:

water generator turbine

,

residential water turbine

,

horizontal shaft turgo hydro turbine

Horizontal  Shaft Turgo Hydro Turbine / Turgo Water Turbine with One / Two Nozzles



Specifications:



 Type

 Horizontal Shaft Turgo turbine with one /two nozzles

 Water head

  50m - 250m.

 Installation capacity

  100KW - 2000KW

 Runner material

 Stainless steel (0Cr13Ni4Mo)

 Generator type

 Synchronous generator

 Auxiliary Equipment

 Governor, Inlet Valve, unit side panel, excitation system



Descrition:



The turgo turbine is a kind of impulse turbine and suitable for heads from 50m-250m.

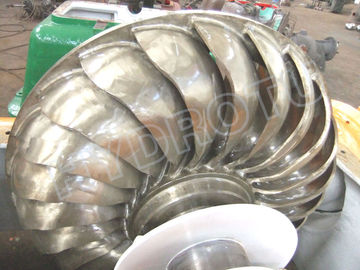

The feature is an angle of 22.5°is formed between the center line of the nozzle jet and the rotational plane of the runner. The water from the penstock is transformed into a high speed jet through the nozzle. The water is directed obliquely to one side of the runner and discharges at the other. The dynamic force of water flow makes the runner rotate rapidly.

Turgo turbine is characterized not only by high specific speed , high flow and even efficiency curve, but also by simple construction, easy erection test and adjustment , reliable operation, simple maintenance and low cost.



Applications:

1.     Water head:  50m - 250m

2.      Capacity: 100kw - 2000KW

3.     Runner diameter: below1.5m.

4.     Frequency: 50/ 60hz

5.     Generator Output voltage: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,



If you are interested in the Turgo turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
