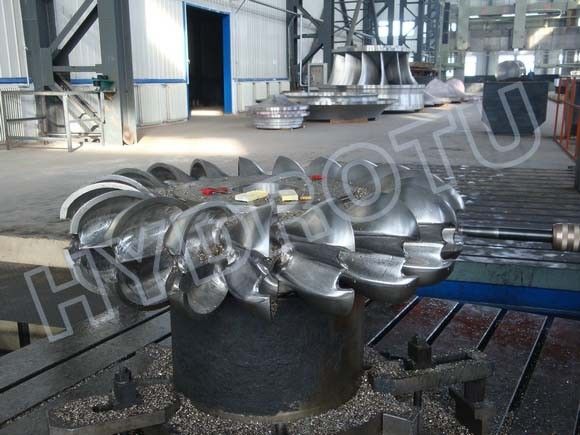

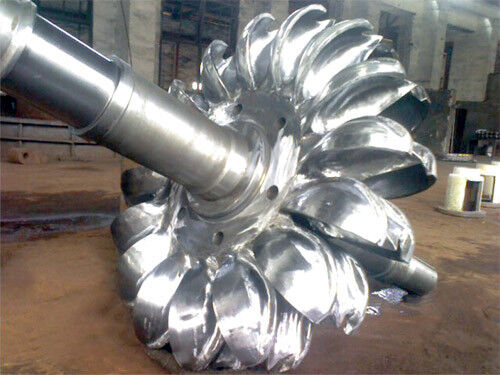

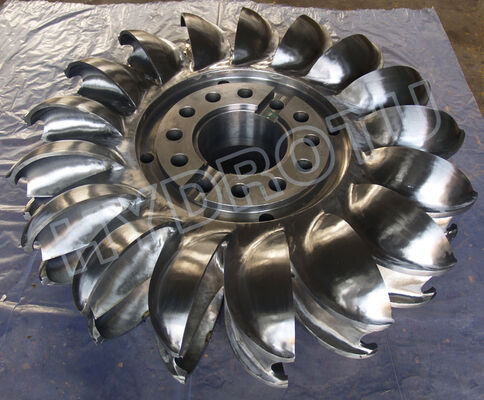

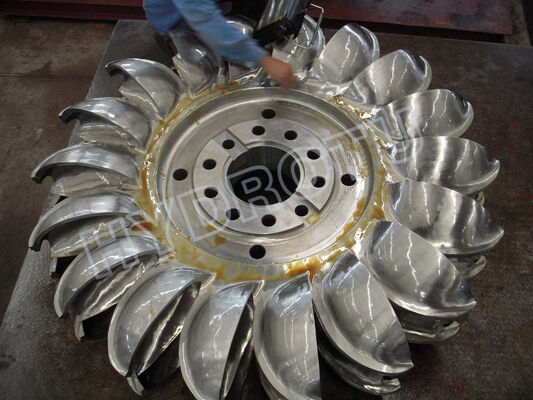

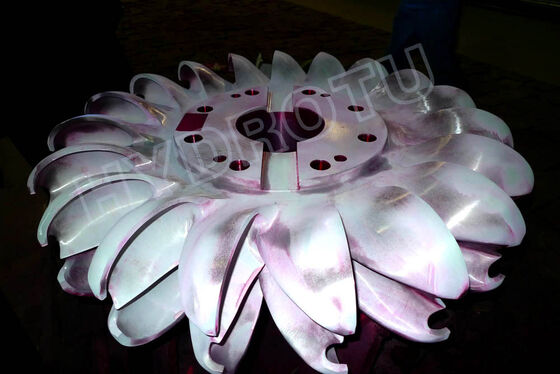

500kw - 20000KW Pelton Turbine Runner / Pelton Wheel for Water Head 80m - 1000m

0.5MW - 20MW Pelton  Turbine Runner / Pelton Wheel for Heads 80m - 1000m

Descrition:

The Pelton turbine is widely used in hydropower station with the heads from 80-1600m.

Pelton turbine is consisted of runner, turbine case, nozzles assembly, inlet pipe, deflector etc. The runner is assembled in the shaft of the generator, torque transmission by ping.

lt utilizes the dynamic power of high pressure water flow to rotate the runner and force the rotor work, The centre line of the jet is in the same plane as the runner while rotating.

Pelton turbine has the advantages of compact construction, stable running and easy operation. Normally, Small pelton turbine always arranged with horizontal shaft and one or two nozzles,   Medium size and larger Pelton turbines are most often arranged with vertical shaft, and equip four or six nozzles to obtain more power.

Applications:

1.     Water head:  80m -- 1000m

2.      Power: 0.5MW -- 20MW

3.     Machining type: Cast abrading or monoblock Forge CNC

4.     Diameter: below 2.5m

If you are interest in the Francis turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

We can offer pelton turbine runner above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.

Specifications:

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
