Product Details:
|
| Product Features: | Horizontal S Type Turbine | Type: | Kaplan Hydro Turbine |
|---|---|---|---|
| Water Head Range: | 5m-20m | Blades Material: | Stainless Steel (0Cr13Ni4Mo) |
| Efficiency: | 95% | Installation Capacity: | 0.1MW -- 5MW |
| Cooling System: | Water Cooled |
The S Type Turbine is specifically designed for use in hydroelectric power plants, where it can harness the power of water to generate electricity. It is a highly reliable and efficient piece of equipment that is made to last.
One of the standout features of the S Type Turbine is its horizontal design. This makes it ideal for use in locations where space is limited, as it can be installed in a compact area. Additionally, the turbine is designed to operate in a water head range of 5m-20m, making it highly versatile and suitable for a range of different applications.
The runner diameter of the S Type Turbine is less than 2 meters, making it highly efficient and effective at generating electricity. It is also highly durable, thanks to its high-quality construction and use of premium materials.
The S Type Turbine is a complete hydro turbine generator system that includes all the necessary hydro turbine parts, such as the runner, guide vanes,wicket and bearings. It is designed to be easy to install and operate, making it an ideal choice for hydroelectric power plants of all sizes.

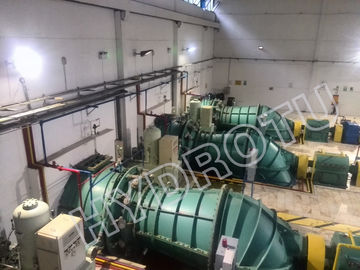

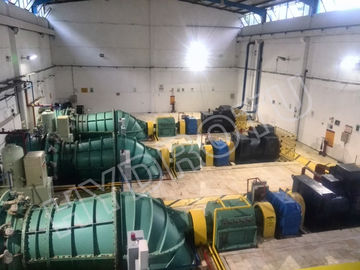

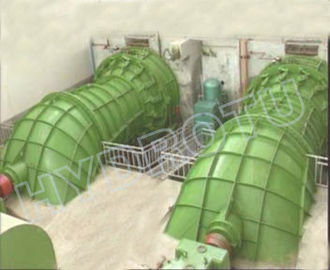

The s type turbine has a horizontal axis arrangement, with a notable feature in its structure being that the guide vanes are arranged at an angle of 65° relative to the centerline of the turbine unit. It employs an axial conical water Distributor. The flow passage of the shaft-extended turbine consists of an inlet pipe, a seat ring, a conical water distributor, a runner chamber, a tailrace water conical pipe, an S-shaped tailrace water elbow, and a tailrace water channel. The flow passage of the shaft-extended axial flow turbine is axial, with the water flowing parallel to the turbine axis towards the runner. This allows the upstream water to be introduced into the conical water distributor with as little hydraulic loss as possible and evenly, forming an ideal ring flow into the runner chamber and then being efficiently converted into mechanical energy by the runner. The tailrace water conical pipe and S-shaped tailrace water elbow fully recover the energy at the runner outlet.
The turbine main shaft passes horizontally through the elbow tube and is connected to the generator. The generator and turbine bearings share one oil supply system for centralized oil supply.
In summary, the S Type Turbine is a highly efficient and reliable hydro turbine generator that is designed to operate at low head and low speed project.
Its horizontal design and water head range of 5m-20m make it highly versatile and suitable for a range of different applications. it is highly efficient at generating electricity, and is made to last thanks to its high-quality construction and use of premium materials.
In the development and utilization of small and medium-sized hydropower stations with low head, axial extension tubular turbine has the advantages of full utilization of resources, saving of investment, and the effect of electricity increment and comprehensive benefit increment, which is a very economical turbine type for the development of low head runoff small and medium-sized hydropower stations.
In the development of low-head small hydroelectric power plants, axial-shaft propeller turbines are recommended for use when the economic runner diameter is D1≤3m and the single-machine capacity is N<5MW, as they have a lower investment.
The S Type Hydro Turbine is a Horizontal Hydro Turbine and is a type of Kaplan Hydro Turbine. Its efficiency level is an impressive 95%, making it a great choice for those looking for reliable and efficient Hydro Turbine Generators.
This product is extremely versatile and can be used in a range of different settings, including:
The S Type Hydro Turbine is made from high-quality materials, including Stainless Steel (0Cr13Ni4Mo) blades, which are durable and long-lasting.
In summary, the HYDROTU S Type Hydro Turbine is a reliable and efficient product that is perfect for a variety of applications and scenarios. Its high-quality materials and manufacturing standards make it a great choice for those looking for Hydro Turbine Generators or Hydro Turbine Parts.
The S Type Hydro Turbine is a horizontal Kaplan Hydro Turbine Generator. It is designed to operate within a water head range of 5m-20m and has an installation capacity of 0.1MW-5MW. The turbine's blades are made of Stainless Steel (0Cr13Ni4Mo), ensuring a durable and long-lasting product.
Our customization services allow customers to tailor the product to their specific needs. Whether it's adjusting the water head range or altering the blades' material, we can work with you to create an Axial Flow Hydro Turbine that meets your requirements. Contact us today to discuss your unique needs.
Product Features:
Choose HYDROTU for your Kaplan Hydro Turbine Generator needs. Our customization services make it easy to create a product that fits your exact specifications.
Our S Type Turbine product comes with comprehensive technical support and services to ensure smooth operations and maximum efficiency. Our team of experienced technicians and engineers are available to provide on-site installation, commissioning and maintenance services. Additionally, we offer remote technical support through phone and email, as well as access to our online knowledge base and resources.
We provide training programs for your personnel to ensure that they are equipped with the necessary knowledge and skills to operate and maintain the equipment effectively. Our spare parts service ensures that you have access to genuine parts that are fully compatible with your S Type Turbine, thereby minimizing downtime and ensuring optimal performance.
We are committed to providing exceptional customer service and technical support to all our clients. Contact us to learn more about our technical support and services for the S Type Turbine product.
