5-20m Head Range Stainless Steel Kaplan Semi Axial Flow Hydroelectric Turbine

Product Description:

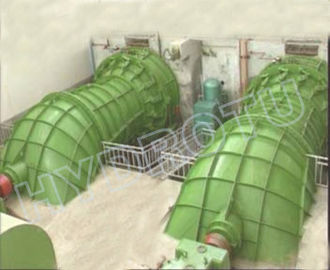

The S type turbine is also known as axial-shaft tubular turbine, is a type of turbine in which the water turbine is installed within the water flow passage and the water is discharged downstream through a curved inlet pipe. Due to the fact that the longitudinal section of the flow passage and the turbine shaft is in the shape of an "S". This type of water turbine inlet is very sensitive to flow irregularities at low flow rates, and the additional disturbance to the main shaft caused by the water flow rapidly leaving the turbine is relatively large, so this type of pumped turbine unit is usually used for water heads of 6 meters or above.

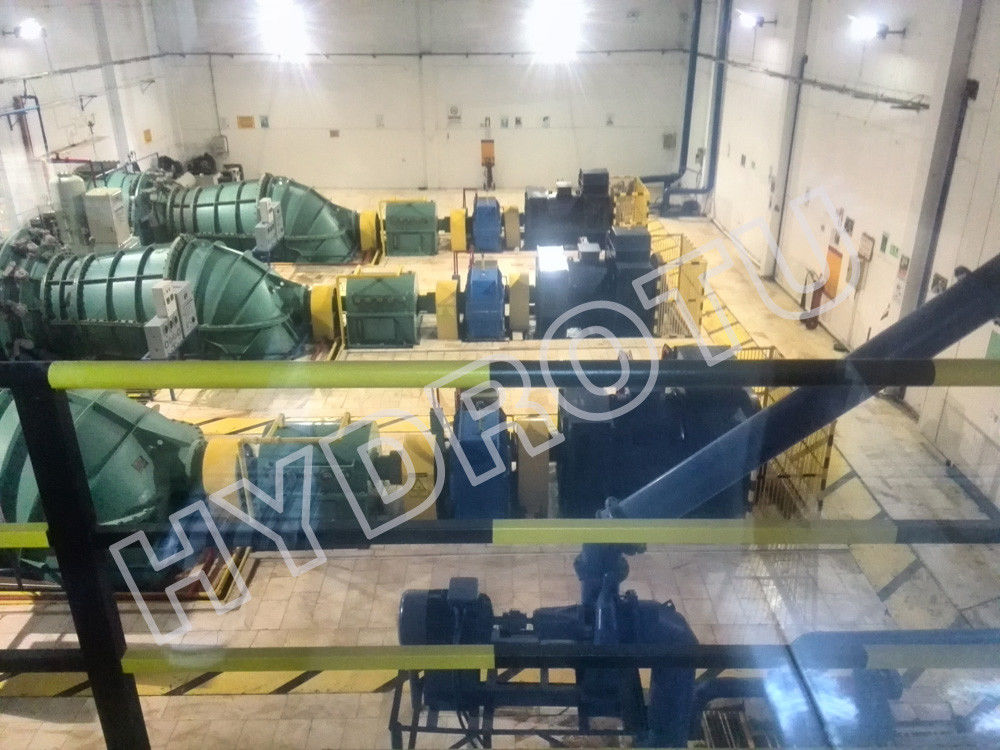

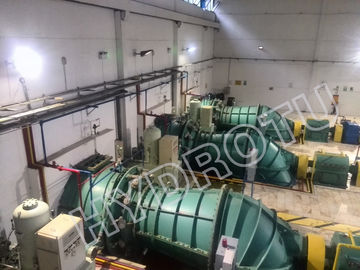

The S type turbine unit can be classified into front axial-shaft, rear axial-shaft, and oblique axial-shaft according to the arrangement of the main shaft. One of the main features of the axial-shaft pumped turbine unit is that it has no penstock and bent tailrace water pipe compared to the axial-flow turbine, and the civil engineering workload is small. The generator is placed in a pit outside the flow passage and connected to the water turbine inside the flow passage through a shaft that passes through the wall of the flow passage pipe.

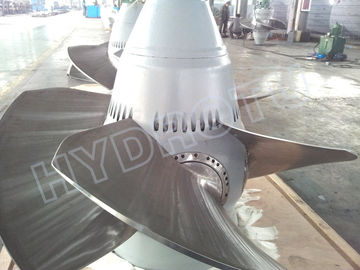

One of the key features of the S Type Turbine is its blades material, which is made of high-quality stainless steel (0Cr13Ni4Mo). This ensures durability and resistance to corrosion, making it ideal for long-term use in hydroelectric power plants.

The S Type Turbine is also equipped with a Hydraulic speed governor, which ensures that the turbine operates at optimal speed and frequency.

The S Type Turbine has a wide installation capacity ranging from 0.1MW to 5MW. This makes it suitable for a range of power plant sizes, from small-scale operations to larger industrial facilities.When the water head is very low, the turbine speed is low and the unit capacity is not large, can select the s type hydro turbine.

 The S Type Turbine has several advantages over other types of turbines. It offers better stability and requires less maintenance compared to other vertical turbines. It also has a smaller footprint, making it easier to install and operate in tight spaces.

With its superior performance and reliability, the S Type Turbine is an excellent choice for power plant operators looking for a dependable hydro turbine generator. Its innovative design, coupled with its high-quality materials and components, make it a cost-effective solution for power generation needs.

Applications:

The S type hydro turbine is suitable for a range of water head scenarios, including 5m to 20m, making it ideal for locations where water resources are limited, but power generation is still important.

The blades of the turbine are made from high-quality stainless steel (0Cr13Ni4Mo), which ensures that they are durable and can withstand harsh environments and high-speed rotation. The turbine has an efficiency of 95%, making it a highly efficient power generation option for water resources.

The S type hydro turbine is suitable for a range of applications, including power generation for small and medium-sized water power stations. It can be used in scenarios where the flow of water is low or the water resources are limited. The turbine can also be used in irrigation systems, where it can help to ensure that crops are adequately watered.

In conclusion, the HYDROTU S type hydro turbine is a high-quality and reliable power generation option for water resources. Its efficiency, durability, and suitability for a range of scenarios make it a popular choice for those looking for a reliable and cost-effective means of generating power from water resources.

Customization:

HYDROTU S Type Hydro Turbine

If you have a hydropower project, you should send us your project water Head, rated flow, unit number etc basic parameter, then we can give you a primary design and price. Please download the "Enquiry sheet.doc" and fill in the sheet,send to us by email.

The S Type Hydro Turbine from HYDROTU is a high-quality product that is manufactured in CHINA. It comes with a CE certification and requires a minimum order quantity of one.

The blades of the HYDROTU S Type Hydro Turbine are made of Stainless Steel (0Cr13Ni4Mo), which ensures durability and longevity. This product is perfect for those looking for a Kaplan Hydro Turbine Generator or a Kaplan Hydro Turbine.

Support and Services:

The S Type Turbine product offers comprehensive technical support and services to ensure maximum efficiency and performance. Our team of experts is available to provide assistance with installation, maintenance, and troubleshooting of the turbine product. We also offer customization services to tailor the turbine to specific customer needs. In addition, we provide training and education to our customers to ensure proper use and handling of the turbine. Our commitment to customer satisfaction means that we are always available to answer any questions or concerns regarding the S Type Turbine product.
