Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor

China Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier
Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor supplier

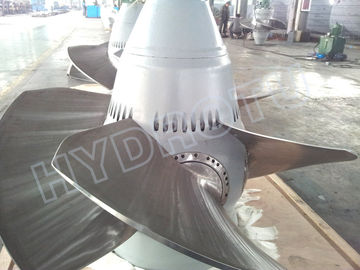

Large Image :  Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with Generator and Speed Governor

Product Details:

Place of Origin: Zhejiang.China
Brand Name: Hydrotu
Certification: CE
Model Number: Kaplan Turbine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Turbine Type: Kaplan Turbine Blade Material: Stainless Steel With CNC
Hub Material: Carbon Steel Water Head: 10m-25m
Capacity: 100KW-20000KW

Vertical Kaplan Water Turbine / Kaplan Hydro Turbine with synchronous Generator and Speed Governor



Descrition:

The Kaplan turbine (axial-flow turbine) for low head from 2m to 70m. This type of turbine is mostly suitable for hydropower stations with low water head and big flow.

lts feature is that the water flow passes through the runner axially. The axial-flow turbine can be classified into two forms according to the runner construction: one is fixed blades (Propeller) for small variation of head and power, the other is movable blades (Kaplan) for large variation of head and power.

The kaplan turbine with vertical shaft arrangement , with three types as open flume, pressure flume, and seal off (concrete spiral case).

Generally, Kaplan turbine is composed of distributor, guide vane, runner, draft tube etc.



Applications:



1.     Water head:  2m -- 70m

2.      Power: 0.1MW -- 30MW

3.     Frequency: 50hz / 60hz

4.     Output voltage: 400V, 3.3KV, 6.3KV, or 10.5KV AC three phase,



 If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Specifications:



Type

Kaplan with fixed blades/Kaplan with movable blades

Water head

 2m - 70m.

Installation capacity

100KW - 20000KW

Runner blades material

Stainless steel (0Cr13Ni4Mo)

Generator type

Synchronous generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system





Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.



With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.



HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
