Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project

Certification
China Hangzhou Hydrotu Engineering Co.,Ltd. certification
China Hangzhou Hydrotu Engineering Co.,Ltd. certification
Customer Reviews

—— Business License

Hydrotu has performed all the responsibilities.Water turbine and generator set operates safely and steadily with lower noisy and good quality.

—— HUlUSI SITKI -Turkey

The turbine bought from hydrotu in 2010, it operates steadily, continuous working without faults, has perfect after-sale service.

—— Dragan Klisura-Serbia

I'm Online Chat Now

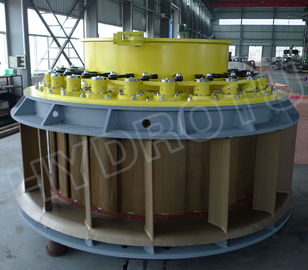

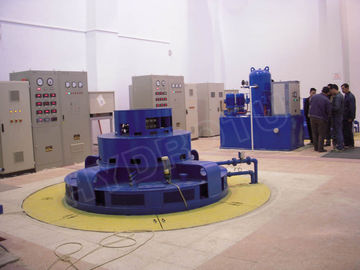

Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project

Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project
Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project

Large Image :  Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project

Product Details:
Place of Origin: Zhejiang.China
Brand Name: Hydrotu
Certification: CE
Model Number: Kaplan Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project

Description
Type: Kaplan Turbine Runner Blades Material: Stainless Steel CNC
Water Head: 2m-50m Capacity: 0.1MW-20MW
Runner Type: Fixed Blades/regulator Blades
High Light:

micro water turbine

,

hydro generator turbine

,

kaplan hydro turbine with fixed blades

 Axial Flow Turbine Kaplan Hydro Turbine / Kaplan Water Turbine for Water Head 2m - 70m Hydropower Project



Applications:



1.     Water head: from 2m --- 70m

2.      Power: 0.1MW --- 30MW

3.     Frequency: 50/ 60hz

4.     Output Type: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,



 If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Kaplan Turbine Descrition:



The Kaplan (axial-flow) turbine for low head from 2m to 70m. This type of turbine is mostly suitable for hydropower stations with low water head and big flow.

lts feature is that the water flow passes through the runner axially. The axial-flow turbine can be classified into two forms according to the runner construction: one is fixed blades (Propeller) for small variation of head and power, the other is movable blades (Kaplan) for large variation of head and power.

The kaplan turbine with vertical shaft arrangement , with three types as open flume, pressure flume, and seal off (concrete spiral case).

Generally, Kaplan turbine is composed of distributor, guide vane, runner, draft tube etc.



Main Structure of Kaplan Water Turbine



This hydraulic turbine is axial flow turbine with a vertical shaft. And its spiral case is made of metal or concrete.
The water flows through the channeling pipe, and then into the spiral case, which ensure that the water enter the turbine circumferentially and symmetrically, forming certain circumfluence quantum.
The water flows through the stay ring into the distributor, whose guide vanes can regulate the turbine discharge and the flow direction and thus make the water flow into the runner circumferentially and symmetrically. Consequently, the runner revolves and converts hydraulic energy into mechanical energy and then drives the rotor of the generator revolve by the force of the main shaft of the hydraulic turbine, thus converting the mechanical energy into electrical energy. The water, which has gotten out of the runner, flows to the downstream of river through the draft tube.
Because of the restoration of the draft tube, the energy of the water flowing out of the outlet, is partly reused, thus loss is reduced and efficiency is improved,



Main structures of the hydraulic turbine are described in the following.

  • Draft tube assembly
  • Rotating parts assembly
  • The distributor assembly





Specifications:

Type

Kaplan with fixed blades/Kaplan with movable blades

Water head

From 2m -- 70m.

Installation capacity

From .0.1MW --- 20MW

Runner blades material

Stainless steel (0Cr13Ni4Mo)

Generator type

Synchro generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system





Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.



With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.



HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.



HYDROTU achieved ISO9001 quality system certification, has perfect quality management and process control system. Focus on building own brand, efforts to build brand of international competitive products. Hydrotu is always committed to research and development of new products, new technology,  improve manufacturing capacity, and perfect the quality management system and service system.

Our goals is " Fine manufacturing, pursue quality products, supply the best quality hydropower equipment".
