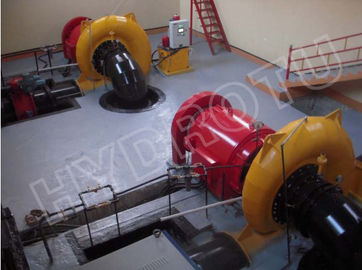

400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator

400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator
400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator

Large Image :  400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Francis turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator

Description
Turbine Type: Francis Water Turbine Head Range: 20m-300m
Capacity: 100KW-30000KW Runner Material: Stainless Steel
High Light:

hydraulic turbine governor

,

francis water turbine

,

400KW francis hydraulic turbine

 400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator



Technical Specifications and Main Parameters:

Mode                                     Horizontal Francis

Rated head                           20.0 m

Rated discharge                  2x2.391m3/s

Rated output                         2x432KW

Rated efficiency                    92.1%

Rated speed                         600 rpm

Runaway speed                   1060 rpm

Runner Diameter                  65 cm

                       Suction head                    +2.0m

Runner material                    Stainless steel (0Cr13Ni4Mo)

Rotary direction            Clockwise viewed from generator to turbine

Descrition:

The Francis type turbine is mostly suitable for hydropower stations with medium or high head from 10m to 300m. They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.

lts feature is that the water flow enters the runner inward in a radial direction , changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc.

Main Structure of Francis Hydro Turbine

This hydraulic turbine type is Horizontal shaft Francis. A inlet valve is equipped in front of the spiral casing of the turbine. When viewed at the turbine from the generator end, the rotating direction of the hydraulic turbine is clockwise .The turbine is horizontal shaft and metallic spiral casing and the stainless steel runner. This unit has two bearings, assembled on the generator seat. The principal parts of the structure of turbine as follows:

1)Spiral case

2) Distributor

3) Rotating parts

4)Inlet tube

5) Draft tube

6) Layout for water,instruments and pipe-line

Water flows through penstock of the power station, Butterfly valve, expansion pipe, inlet tube, spiral case and wicket gates into the runner, and then it drives the runner to revolve and convert hydraulic energy into mechanical energy and drives the rotor of generator revolution by the force of the main shaft of turbine, thus converting the mechanical energy into electric energy.



Francis turbine Applications:

1.     Water head: 10-- 300m

2.      Power: 0.1MW--- 30MW

3.     Frequency: 50/ 60hz

4.     Synchronous Generator Output Voltage: 0.4KV, 6.3KV, or 10.5KV AC three phase,



 If you are interested in the Francis turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small Francis turbine always arranged with horizontal shaft, but it is not absolute.





Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.



400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 0

400KW Small Horizontal Shaft Francis Hydro Turbine , Francis Water Turbine Generator 1
