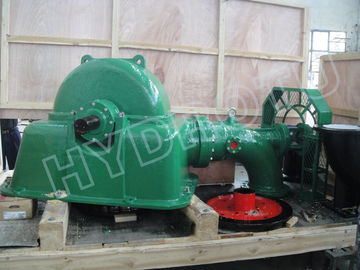

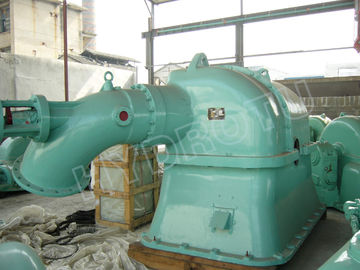

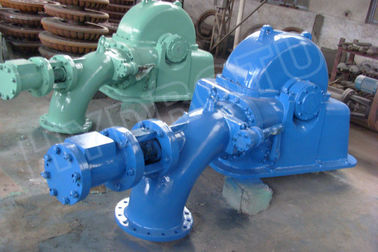

High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m

High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m

    • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m
    • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m
    • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m
    • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m
    • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m
    • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m
  • High Specific Speed Turgo Hydro Turbine / Turgo Water Turbine with Stainless steel Runner Diameter Below 1.5m

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Hydrotu
    Certification: CE
    Model Number: Turgo tubine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden Case( Export Standard Package)
    Delivery Time: Negotiable
    Payment Terms: L/C,T/T
    Contact Now
    Detailed Product Description
    Type: Turgo Turbine Runner Material: Casting Stainless Steel
    Water Head: 30m-300m Capacity: 100KW-2000KW
    High Light:

    turgo water turbine

    ,

    residential water turbine

    High Specific Speed Turgo  Water Turbine with Stainless Steel Runner Diameter Below 1.5m



    Descrition:



    The turgo turbine is a kind of impulse turbine and suitable for heads from 50m-250m, between Francis turbine and Pelton Turbine.

    The feature is an angle of 22.5°is formed between the center line of the nozzle jet and the rotational plane of the runner. The water from the penstock is transformed into a high speed jet through the nozzle. The water is directed obliquely to one side of the runner and discharges at the other. The dynamic force of water flow makes the runner rotate rapidly.

    Turgo turbine is characterized not only by high specific speed , high flow and even efficiency curve, but also by simple construction, easy erection test and adjustment , reliable operation, simple maintenance and low cost.



    Applications:

    1.     Water head:  30m - 300m
    2.      Capacity: 100kw - 2000KW
    3.     Runner diameter: below1.5m.
    4.     Frequency: 50/ 60hz
    5.     Generator Output Type: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,



    If you are interested in the Turgo turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



    Specifications:



     Type

     Horizontal Turgo turbine with one /two nozzles

     Water head

     From 50m to 250m.

     Installation capacity

     From 100KW to 2000KW

     Runner material

     Stainless steel (0Cr13Ni4Mo)

     Generator type

     Synchro generator

     Auxiliary Equipment

     Governor, Inlet Valve, unit side panel, excitation system



    Competitive Advantage:



    HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

    With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

    HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

    HYDROTU achieved ISO9001 quality system certification, has perfect quality management and process control system. Focus on building own brand, efforts to build brand of international competitive products. Hydrotu is always committed to research and development of new products, new technology,  improve manufacturing capacity, and perfect the quality management system and service system.



    Our goals is " Fine manufacturing, pursue quality products, supply the best quality hydropower equipment".

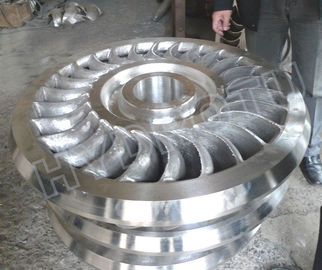

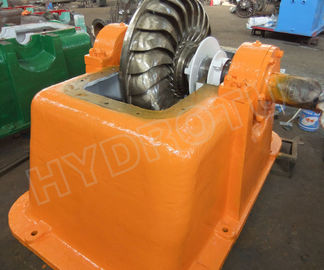

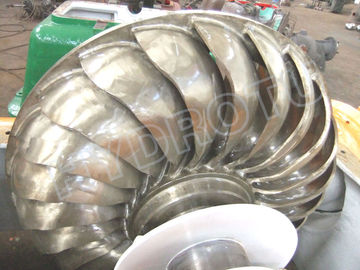

    turgo turbine runnerturgo turbine wheel
