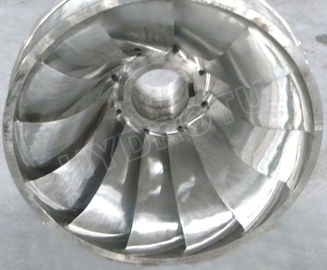

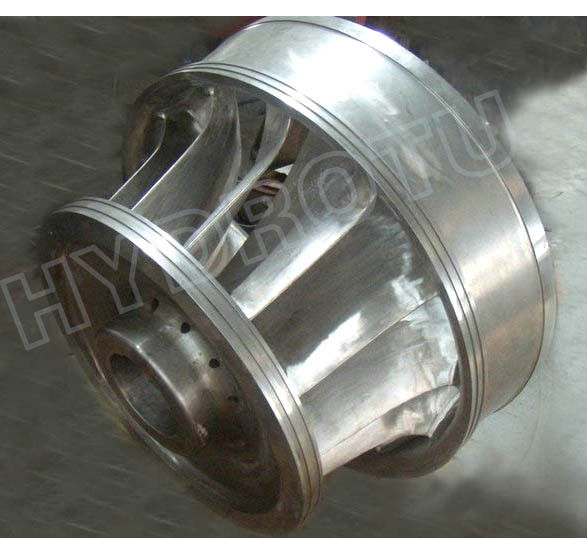

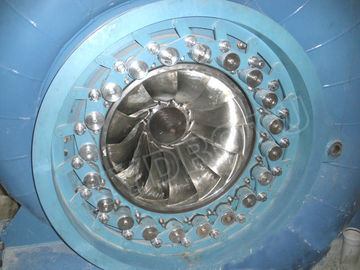

Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material

Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material

    • Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material
    • Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material
    • Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material
    • Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material
    • Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material
  • Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: Hydrotu
    Certification: CE
    Model Number: Francis turbine runner

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wooden Case( Export Standard Package)
    Delivery Time: Negotiable
    Payment Terms: L/C,T/T
    Contact Now
    Detailed Product Description
    Runner Type: Francis Turbine Runner Material: Stainless Steel 0Cr13Ni4Mo
    Water Head: 20m-300m Capacity: 100KW-20000KW

    Horizontal Shaft Water Turbine Francis Turbine Runner For Water Head From 20m -- 300m



    Descrition:

    The Francis type turbine is mostly suitable for hydropower stations with medium or high head from 10m to 300m. They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.

    lts feature is that the water flow enters the runner inward in a radial direction , changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc. Hydoru manufacture Francis runner have a good efficiency and cavitation performance.

     Normally, we adopt the horizontal Francis with capacity below 5MW, runner diameter below 90cm. And the vertical Francis with capacity below 20MW.



    Applications:

    Francis turbines are the most common water turbine in use today.

    They operate in a water head range of 10 to 300 meters and are primarily used for electrical power production. The power output generally ranges from 100KW to 750MW.

    Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small francis turbine always arranged with horizontal shaft, but it is not absolute.



    Specifications:



      Type

      Horizontal/vertical Francis turbine

      Water head

       20m -- 300m.

      Installation capacity

       0.1MW -- 20MW

      Runner material

      Stainless steel (0Cr13Ni4Mo)

      Generator type

      synchro generator

      Auxiliary Equipment

      Governor, Inlet Valve, unit side panel, excitation system



    Water head range for Francis Turbine selection.

    500KW Small Horizontal Shaft Francis Hydro Turbine / Francis Water Turbine generator



    Competitive Advantage:

    HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


    With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


    HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.



    Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material

    Horizontal Shaft Francis Turbine Runner with 0Cr13Ni4Mo stainless steel material
