S Type Hydro Turbine / water turbine with Fixed / adjustable Blades for low water head hydropower project

 S Type Hydro Turbine / water turbine with Fixed / adjustable Blades for low head hydropower project

Descrition:

S type turbine is suitable for water head from 2m to 20m and large discharge hydropower station.

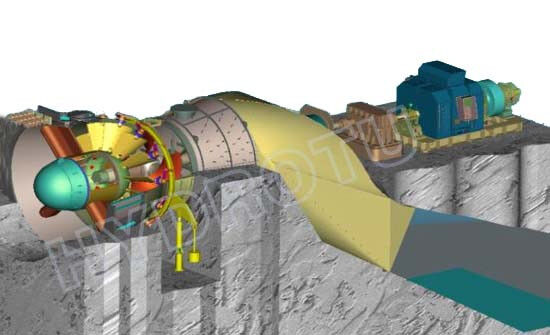

S-type tubular turbine is Available in versions of Horizontal Kaplan, also called  horizontal Kaplan. lt's feature is that the water flow is axial throughout the passage from the inlet to the outlet, so that the passage is a straight conduit essentially.The turbine shaft passes out of the tube at the point where the tube changes direction, installation is ether with the transfer belt or directly connected to the generator. This modern turbine is characterized by high efficiency in a broad band of flow rates.

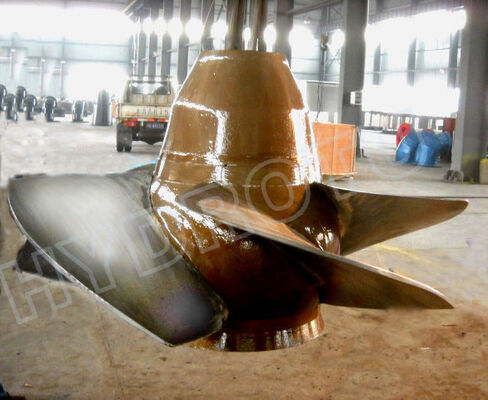

S-type turbine is also consist of fixed runner blades and movable runner blades.

Main Structure of the Hydro Turbine

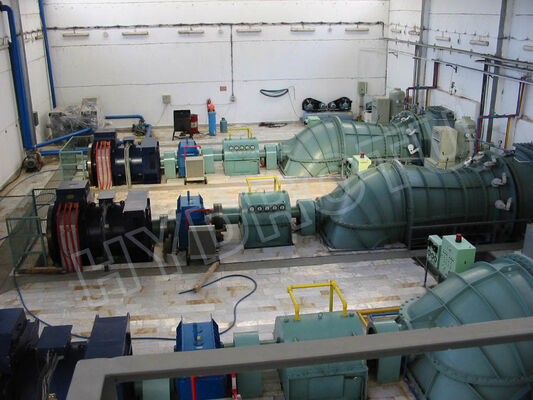

This hydraulic turbine type is Horizontal s type tubular turbine with adjustable blades and guide vane. Water flows through inlet pipe of the power station, stand ring, distributor, runner, tailrace pipe, and drain to tailrace channel. The flow through the turbine, drives the runner to revolve, then the water energy (potential energy and kinetic) convert to mechanical energy of water turbine main shaft, drives the rotor of generator revolution,  thus converting the mechanical energy into electric energy. And start turbine, parallel in grid, increase and decrease load, stop unit by the guide vane governor motion device

the principal parts of the structure of turbine as follows:

Inlet parts assembly
Radial Bearing assembly

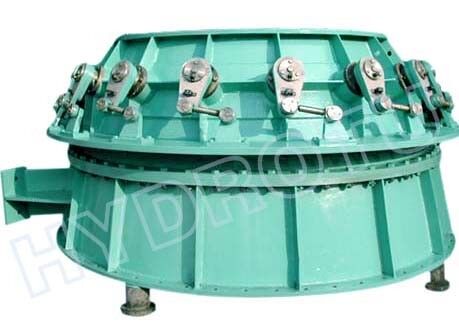

Distributor Assembly
Main shaft assembly

Applications:

1.     Water head: 2m - 20m

2.      Capacity: 0.1MW- 10MW

3.     Runner diameter: 0.4 to 5m

4.     Frequency: 50/ 60hz

5.     generator Output voltage: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,

If you are interested in the S type turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Specifications:
