100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner

100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner
100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner 100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner 100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner 100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner 100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner

Large Image :  100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: S Type turbine
Tubular Turbine: Horizontal Kaplan Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner

Description
Turbine Type: Horizontal S Type Water Turbine Water Head: 5m-25m
Capacity: 100KW-4000KW Blades Material: Stainless Steel (0Cr13Ni4Mo)
High Light:

micro hydro turbines

,

low head water turbine

100KW  - 10MW Low Water Head S Type Tubular Hydro Turbine with Adjustable Blades Runner



S type turbine is suitable for heads from 2m to 20m and large discharge hydropower station.



Describe:

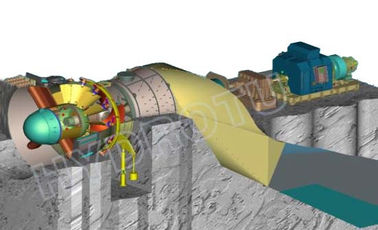

S-type tubular turbine is Available in versions of Horizontal Kaplan turbine, also called  horizontal Kaplan. lt's feature is that the water flow is axial throughout the passage from the inlet to the outlet, so that the passage is a straight conduit essentially.The turbine shaft passes out of the tube at the point where the tube changes direction, installation is ether with the transfer belt or directly connected to the generator. This modern turbine is characterized by high efficiency in a broad band of flow rates.

S-type turbine is also consist of fixed runner blades and adjustable runner blades.



Applications:



1.     Water head:  5m -- 20m

2.      Capacity: 0.1MW -- 10MW

3.     Runner diameter: 0.4m -- 5m

4.     Frequency: 50hz / 60hz

5.     Output voltage: 400V, 6.3KV, or 10.5KV AC three phase,

If you are interested in the S type turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Specifications:



 Type

    S type turbine with fixed blades/ movable blades

 Water head

     5m -- 20m.

 Installation capacity

    0.1MW -- 10MW

 Runner blades material

    Stainless steel (0Cr13Ni4Mo)

Generator type

   Synchro generator

 Auxiliary Equipment

   Governor, Inlet Valve, unit side panel, excitation system



Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.



100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner 0

100KW to 10MW Low Water Head S Type Turbine Tubular Hydro Turbine / water turbine with Adjustable Blades Runner 1
