Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel

Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel
Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel
Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel

Large Image :  Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel

Product Details:
Place of Origin: Zhejiang,China
Brand Name: Hydrotu
Certification: CE
Model Number: Pelton water Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel

Description
Turbine Type: Pelton Hydro Turbine Structure Type: Horizontal Shaft
Water Head: 80m-800m Capacity: 100KW-20000KW
Runner Material: Casting Stainless Steel 0Cr13Ni4Mo,ASTM,CA6NM Nozzles Material:: Stainless Steel
Efficiency Range: 85%-90% Application:: Hydropower Station, Grid-tie Power System
High Light:

20000KW Pelton Hydro Turbine

,

800m Pelton Hydro Turbine

,

three phase Pelton Hydro Turbine

Hydropower Equipment, Pelton Hydro Turbine / Pelton Water Turbine with Synchronous Generator, Speed Governor, Inlet Valve



Descrition:

A Pelton wheel is an impulse-type water turbine invented by American inventor Lester Allan Pelton in the 1870s. The Pelton wheel extracts energy from the impulse of moving water.

Nozzles direct forceful, high-speed streams of water against a series of spoon-shaped buckets, also known as impulse blades, which are mounted around the outer rim of a drive wheel (also called a runner). As the water jet hits the blades, the direction of water velocity is changed to follow the contours of the blades. The impulse energy of the water jet exerts torque on the bucket-and-wheel system, spinning the wheel; the water jet does a "u-turn" and exits at the outer sides of the bucket, decelerated to a low velocity. In the process, the water jet's momentum is transferred to the wheel and hence to a turbine. Thus, "impulse" energy does work on the turbine. Maximum power and efficiency are achieved when the velocity of the water jet is twice the velocity of the rotating buckets. A very small percentage of the water jet's original kinetic energy will remain in the water, which causes the bucket to be emptied at the same rate it is filled, and thereby allows the high-pressure input flow to continue uninterrupted and without waste of energy.



The Pelton turbine is widely used in hydropower station with the heads from 80-1000m.

Pelton turbine is consisted of runner, turbine case, nozzles assembly, inlet pipe, deflector etc. The runner is assembled in the shaft of the generator, torque transmission by ping.

lt utilizes the dynamic power of high pressure water flow to rotate the runner and force the rotor work, The center line of the jet is in the same plane as the runner while rotating.

Pelton turbine has the advantages of compact construction, stable running and easy operation. Normally, Small pelton turbine always arranged with horizontal shaft and one or two nozzles,   Medium size and larger Pelton turbines are most often arranged with vertical shaft, and equip four or six nozzles to obtain more power.



Applications:

Pelton wheels are the preferred turbine for hydro-power where the available water source has relatively high water head at low flow rates.



1.     Water head:  80 m - 1000 m

2.      Power: 500kw - 20000KW

3.     Frequency: 50/60hz

4.     Generator Output voltage: 0.4KVV, 6.3KV, or 10.5KV AC three phase,



If you are interested in the Pelton turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



We can supply pelton turbine generator above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.



Specifications:



Type

Horizontal pelton turbine with one /two nozzles

Vertical pelton turbine with four nozzles

Water head

 80m - 1000m.

Installation capacity

 0.5MW - 20MW

Runner material

Stainless steel (0Cr13Ni4Mo)

Cast machine/Forge + CNC machine

Generator type

Synchronous generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system





Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

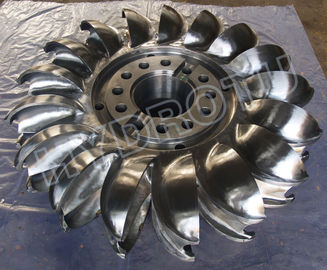

Pelton Turbine Runner



Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel 0Hydropower Equipment 20000KW Pelton Hydro Turbine with High Efficiency Pelton Wheel 1
