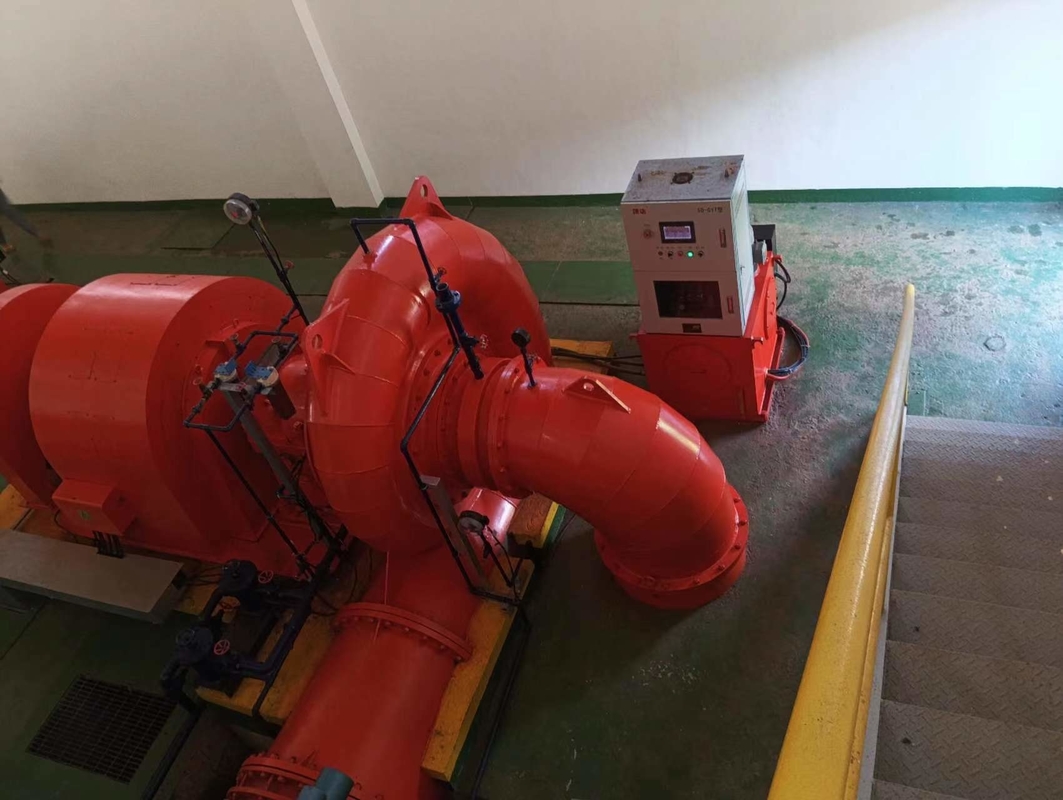

High water Head Francis Turbine with synchronous AC generator

Product Description:

Equipped with a synchronous AC generator, this water turbine is capable of producing a rated power output of 100-10000kW, making it ideal for both small and large-scale power generation projects. It can operate under a water head of 20m-300m with a rated flow of 0.3-20m3/s, allowing it to generate power from a wide range of water sources.

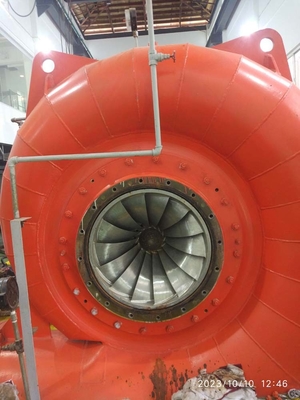

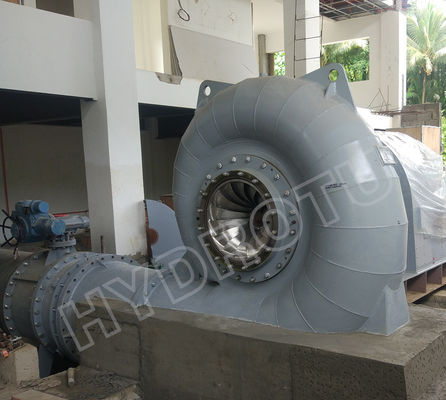

The Francis Hydro Turbine is a popular choice for hydroelectric power generation due to its high efficiency and reliability. The Francis water turbine design features a spiral casing that directs the water flow onto a set of curved blades, which in turn rotate the turbine shaft. This rotary motion is then transmitted to the generator, which converts it into electrical energy.

One of the key benefits of the Francis Hydro Turbine is its automatic control system, which allows it to operate unattended. This reduces the need for human intervention and increases the overall efficiency of the power generation process. Additionally, the design of the turbine ensures that it is easy to maintain and service, further reducing downtime and maintenance costs.

In conclusion, the Francis Hydro Turbine is a highly efficient and reliable hydro generator that is capable of producing significant amounts of electricity from water sources with a range of heads and flows. With its automatic control system and easy maintenance, it is an excellent choice for both small and large-scale power generation projects.



Features:

• Product Name: Francis Hydro Turbine

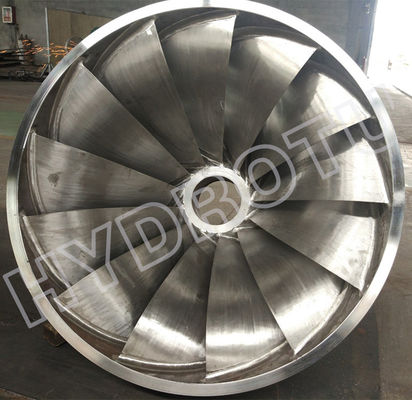

• Runner material: Stainless Steel(0Cr13Ni4Mo)
• Water Head: 20m-300m
• Control System: Automatic, Unattended Operation
• Rated Power: 100-10000kW
• Guide Vane material: Stainless Steel

Our Francis Hydro Turbine is a top-of-the-line water turbine that utilizes a stainless steel runner material (0Cr13Ni4Mo) to optimize performance. It is perfect for water heads ranging from 20m to 300m and is equipped with an automatic, unattended control system for ease of use. The turbine is capable of producing a rated power of 100-10000kW and features a stainless steel guide vane material. If you're in need of a reliable hydro generator, the Francis Hydro Turbine is an excellent choice.



Technical Parameters:

Technical Parameter	Value
Turbine Type	Francis water turbine
Rated Flow	0.3-20m3/s
Control System	Automatic, Unattended Operation
Generator Type	Synchronous AC
Water Head	20m-300m
Runner material	Stainless Steel(0Cr13Ni4Mo)
Spiral Case material	Carbon Steel Q345
Rated Power	100-10000kW
Efficiency	Up To 97%
Guide Vane material	Stainless Steel



Applications:

The Francis Hydro Turbine is available in a range of models, with a rated power of 100-10000kW and an efficiency of up to 97%. This makes it suitable for a wide range of power generation requirements, from small-scale projects to large industrial applications.

One of the key features of the Francis Hydro Turbine is its guide vane material, which is made from stainless steel. This makes it highly resistant to corrosion and wear, ensuring that it can withstand even the harshest operating conditions.

The Francis Hydro Turbine is ideal for use in a variety of scenarios, such as:

• Hydroelectric power plants: The Francis Turbine is a popular choice for hydroelectric power plants, where it can be used to generate electricity from the flow of water.
• Industrial applications: With its high power output and efficiency, the Francis Turbine is well-suited for use in a range of industrial applications, such as mining and manufacturing.
• Remote locations: Thanks to its automatic control system, the Francis Turbine can be used in remote locations where it may not be possible to have someone on-site to monitor operations.

In addition to the Francis Hydro Turbine, HYDROTU also manufactures other types of hydro turbines, including the Kaplan turbine. However, the Francis Turbine is a popular choice due to its high efficiency and versatility.

Overall, the Francis Hydro Turbine is a reliable and efficient source of power generation that can be used in a variety of applications. With its automatic control system and high efficiency, it is an excellent choice for those looking to generate electricity in a sustainable and cost-effective way.

Customization:

We can select the suitable water turbine, generator type according to your project water head and flow, make sure your project have high efficiency under the rated head. We will supply you the water to wire solution, make sure you project successful.

Support and Services:

The Francis Hydro Turbine product technical support and services include:

- Consultation on turbine selection and design

- Technical assistance during installation, commissioning, and operation

- Maintenance and repair services

- Performance optimization and upgrade solutions

- Training programs for operators and maintenance personnel
