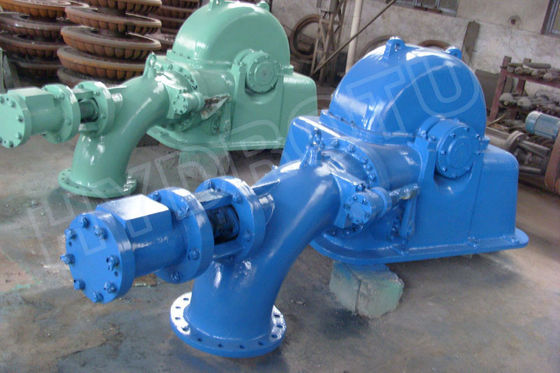

Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Large Image : Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Product Details:

Place of Origin:	Zhejiang, China
Brand Name:	Hydrotu
Certification:	CE
Model Number:	Turgo tubine, Turgo Water Turbine
Document:	Enquiry sheet.doc

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Wooden Case( Export Standard Package)
Delivery Time:	Negotiable
Payment Terms:	L/C,T/T

Contact Now

Stainless Steel Runner Turgo Hydro Turbine for 80m-300m Water Head with 100KW-2000KW Capacity

Description

Turbine Type:

Horizontal Turgo Turbine

Runner Material:

Casting Stainless Steel

Water Head:

80m-300m

Capacity:

100KW-2000KW

Highlight:

Stainless Steel Runner Turgo Hydro Turbine

80m-300m Water Head Turgo Water Turbine

100KW-2000KW Capacity Impulse Turbine

Small Impulse Turbine Turgo Hydro Turbine

Turgo Water Turbine for medium to high water head hydropower projects

Product Overview

Small Impulse Hydro Turbine Turgo Turbine with Stainless Steel Runner designed for 100m water head applications. The Turgo turbine is an impulse turbine suitable for heads ranging from 50m to 250m.

Operating Principle

Water from the penstock is transformed into a high-speed jet through the nozzle. The water is directed at a 22.5° angle to one side of the runner and discharges at the other side. The dynamic force of the water flow causes the runner to rotate rapidly.

Key Components

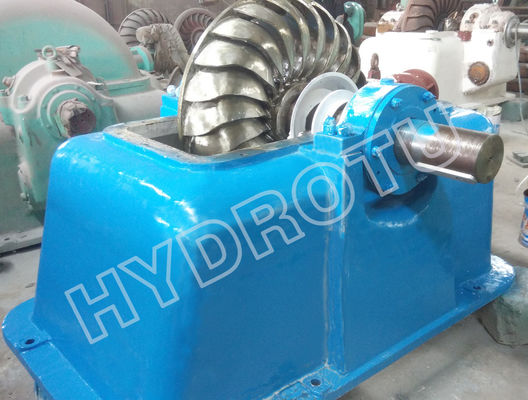

Rotating Assembly: Includes runner, main shaft, flywheel, and water deflector

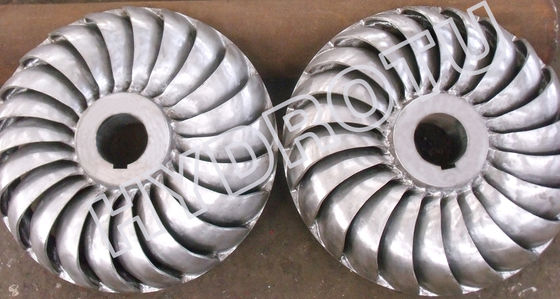

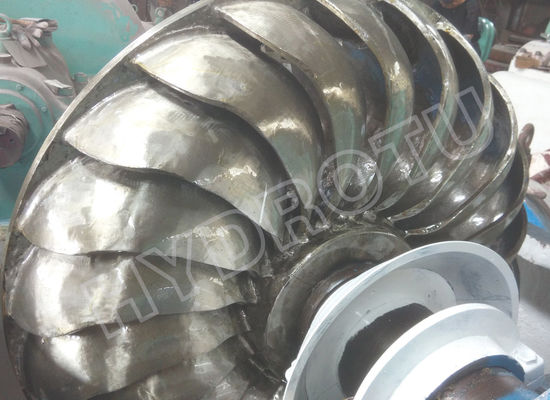

Runner: The principle component featuring three-dimensional camber vanes, hub, and outer ring to strengthen the runner and reduce wind loss
Power Transmission: Plane key system between runner and main shaft with elastic coupling
Bearing System: SKF Ball Bearing for reliable operation

Technical Specifications

Parameter	Specification
Type	Horizontal Turgo turbine with one/two nozzles
Water Head	50m to 250m
Installation Capacity	100KW to 2000KW
Runner Material	Stainless Steel (0Cr13Ni4Mo)
Generator Type	Synchronous Generator
Auxiliary Equipment	Governor, Inlet Valve, Unit Side Panel, Excitation System

Application Parameters

Water head: 50m - 250m
Capacity: 100KW - 2000KW
Runner diameter: Below 1.5m
Frequency: 50Hz or 60Hz
Generator Output: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase

Key Advantages

High specific speed and flow capacity
Even efficiency curve across operating range
Simple construction and easy installation
Reliable operation with minimal maintenance
Cost-effective solution for medium-high head applications

Inquiry Requirements

For detailed quotations, please provide key parameters including net head, flow discharge, unit number, frequency, and voltage requirements.
