500kw - 20MW Pelton Turbine Runner for High Water Head with Generator and Speed Governor

500kw - 20MW Pelton Water Turbine Runner for High water Head Hydropower Project

Descrition:

The Pelton turbine is widely used in hydropower station with the water heads from 80-1000m.

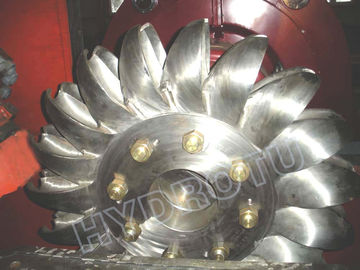

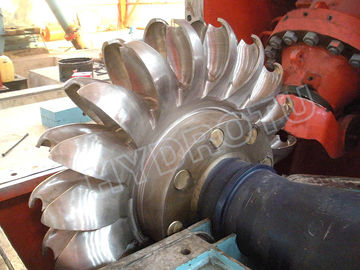

The Pelton wheel is like a circular disk mounted on the rotating shaft . This circular disk have some buckets, placed at equal spacing around its circumference. Nozzles are arranged around the wheel such that the water jet emerging from a nozzle is tangential to the circumference of the wheel.

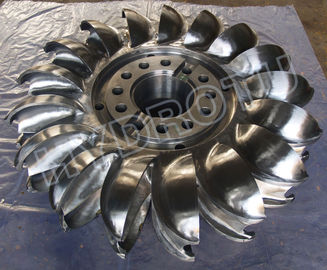

Our pelton runner used high strength stainless steel material, with Cast machining or Forge CNC machining, it is have a good profile and high efficiency.

Hydrotu Pelton runner with Forged integrally + Entire CNC machning has already achieved the ace level in the world since the accumulation of the high head runner experience in decades.

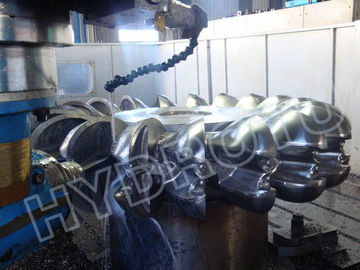

the pelton runner adopt integrally forged ( ASTM A 473 S41500 material), guarantee the reliability of the material, then machine shaping by CNC, improve the pelton buckets precision, and shap wave, thus ensure the turbine hydraulic performance and safty running.

our factory have  advanced test system, all parts have ultrasonic testing, penetration testing, magnetic testing, radiographic testing, dimension&profile checking by measuring arm, to guarantee our turbine best quality.

Applications:

1.     Water head:  80m -- 1000m

2.      Power: 0.5MW to 20MW

3.     Machining type: Cast abrading or monoblock Forge CNC

4.     Diameter: below 2.5m

If you are interest in the pelton turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

We can offer pelton turbine runner , supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.

Specifications:

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.

With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
