Pelton Hydro Turbine for Water Heads 80 - 800m

China Pelton Hydro Turbine  for Water Heads 80 - 800m supplier
Pelton Hydro Turbine  for Water Heads 80 - 800m supplier Pelton Hydro Turbine  for Water Heads 80 - 800m supplier Pelton Hydro Turbine  for Water Heads 80 - 800m supplier Pelton Hydro Turbine  for Water Heads 80 - 800m supplier Pelton Hydro Turbine  for Water Heads 80 - 800m supplier

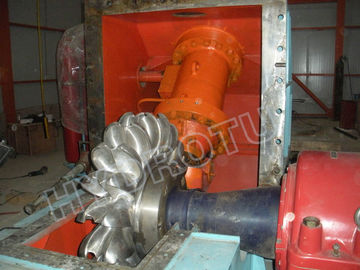

Large Image :  Pelton Hydro Turbine for Water Heads 80 - 800m

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Hydrotu
Certification: CE
Model Number: Pelton water Turbine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Turbine Type: Horizontal Pelton Turbine Runner Material: Forged CNC Stainless Steel
Water Head: 80m-800m Capacity: 100KW-20000KW

Pelton Hydro Turbine/ Pelton Water Turbine with high water Head  for Hydropower Station



Descrition:



The Pelton turbine is widely used in hydropower station with the water heads from 80-800m.

Pelton turbine is consisted of pelton runner, turbine case, nozzles assembly, inlet pipe, deflector etc. The runner is assembled in the shaft of the generator, torque transmission by ping.

lt utilizes the dynamic power of high pressure water flow to rotate the runner and force the rotor work, The centre line of the jet is in the same plane as the runner while rotating.

Pelton turbine has the advantages of compact construction, stable running and easy operation. Normally, Small pelton turbine always arranged with horizontal shaft and one or two nozzles,   Medium size and larger Pelton turbines are most often arranged with vertical shaft, and equip four or six nozzles to obtain more power.



Applications:

1.     Water head: from 80m ~ 800m

2.      Power: 0.5MW ~ 20MW

3.     Frequency: 50/ 60HZ

4.     Generator Output voltage: 0.4KV, 6.3KV, or 10.5KV AC three phase,

We can supply pelton turbine generator above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.

If you are interested in the Pelton turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Specifications:

 Type

 Horizontal pelton turbine with one /two nozzles

  Vertical pelton turbine with four nozzles

 Water head

 From 80m ~ 800m.

 Installation capacity

 From 0.5MKW ~ 20MW

 Runner material

 Stainless steel (0Cr13Ni4Mo)

 Cast machine/Forge + CNC machine

 Generator type

 Synchro generator

 Auxiliary Equipment

 Governor, Inlet Valve, unit side panel, excitation system



500KW Small Horizontal Shaft Francis Hydro Turbine / Francis Water Turbine generator





Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
