Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy

Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy
Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy

Large Image :  Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy

Product Details:
Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Francis turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy

Description
Turbine Type:: Francis Water Turbine Runner Material: Stainless Steel (0Cr13Ni4Mo)
Water Head: 30m-300m Capacity: 100KW-10000KW
High Light:

hydraulic turbine governor

,

water power turbine

,

500KW horizontal francis turbine

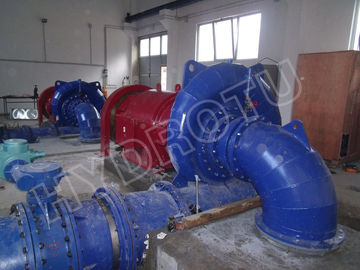

Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations





Technical Specifications and Main Parameters



Mode                                    Horizontal Francis

Rated head                           37.0 m

Rated discharge                  1.6 m3/s

Rated output                         500KW

Rated efficiency                    91.0%

Rated speed                         1000 rpm

Runaway speed                   1805 rpm

Runner Diameter                  50.5 cm

Suction head                          +2.0m

Runner material                    Stainless steel (0Cr13Ni4Mo)

Rotary direction                 Clockwise viewed from generator to turbine



Descrition:



The Francis type turbine is mostly suitable for hydropower stations with medium or high head from 20m to 300m with higher average efficiency. capable of running stably within 50%-100% rated output and having a wide application in hydropower projects.

lts feature is that the water flow enters the runner inward in a radial direction , changes direction gradually and then passes out axially. Francis turbine is characterized by reliable operation, simple construction and high efficiency, etc.

They are in both vertical or horizontal shaft arrangement and could be vastly selected by the hydraulic power stations.



Main Structure of Francis Hydro Turbine



This hydraulic turbine type is Horizontal shaft Francis. A inlet valve is equipped in front of the spiral casing of the turbine. When viewed at the turbine from the generator end, the rotating direction of the hydraulic turbine is clockwise .The turbine is horizontal shaft and metallic spiral casing and the stainless steel runner. This unit has two bearings, assembled on the generator seat. The principal parts of the structure of turbine as follows:

1)Spiral case

2) Distributor

3) Rotating parts

4)Inlet tube

5) Draft tube

6) Layout for water,instruments and pipe-line

Water flows through penstock of the power station, Butterfly valve, expansion pipe, inlet tube, spiral case and wicket gates into the runner, and then it drives the runner to revolve and convert hydraulic energy into mechanical energy and drives the rotor of generator revolution by the force of the main shaft of turbine, thus converting the mechanical energy into electric energy.



Francis turbine Applications:



1.     Water head: 20-- 300m

2.      Power: 0.1MW--- 30MW

3.     Frequency: 50/ 60hz

4.     Synchronous Generator Output Voltage: 0.4KV, 6.3KV, or 10.5KV AC three phase,



 If you are interested in the Francis turbine, you should send some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.

Normally, Medium size and larger Francis turbines are most often arranged with a vertical shaft, Small Francis turbine always arranged with horizontal shaft, but it is not absolute.





Water head range for Francis Turbine selection.

Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy 0

Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

HYDROTU achieved ISO9001 quality system certification, has perfect quality management and process control system. Focus on building own brand, efforts to build brand of international competitive products. Hydrotu is always committed to research and development of new products, new technology,  improve manufacturing capacity, and perfect the quality management system and service system.

Our goals is " Fine manufacturing, pursue quality products, supply the best quality hydropower equipment".



Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy 1

Small Horizontal Shaft Francis Hydro Turbine 500KW For Hydropower Stations renewable energy 2
