Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades

Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades
Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades

Large Image :  Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades

Product Details:
Place of Origin: Zhejiang.China
Brand Name: Hydrotu
Certification: CE
Model Number: Kaplan Turbine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T

Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades

Description
Type: Kaplan With Fixed Blades / Movable Blades Water Head: 2m -- 70m
Installation Capacity: 100KW --30000KW Runner Blades Material: Stainless Steel (0Cr13Ni4Mo)
Generator Type: Synchronous Generator Power: 100KW -- 30000KW
Frequency: 50/ 60hz Output Voltage Class: 0.4KV, 3.3KV, 6.3KV, Or 10.5KV AC
High Light:

micro water turbine

,

hydro generator turbine

,

double adjustable blades kaplan turbine

Low Water Head Full Kaplan Hydro Turbine With Adjustable Blades



Descrition:



The Kaplan Turbine(axial-flow turbine) for low head from 2m to 70m. This type of turbine is mostly suitable for hydropower stations with low water head and big flow.

lts feature is that the water flow passes through the runner axially. The axial-flow turbine can be classified into two forms according to the runner construction: one is fixed blades (Propeller) for small variation of head and power, the other is movable blades (Kaplan) for large variation of head and power.

The kaplan turbine with vertical shaft arrangement , with three types as open flume, pressure flume, and seal off (concrete spiral case).



Generally, Kaplan turbine is composed of distributor, guide vane, runner, draft tube etc.



The water flows through the channeling pipe, and then into the spiral case, which ensure that the water enter the turbine circumferentially and symmetrically, forming certain circumfluence quantum.
The water flows through the stay ring into the distributor, whose guide vanes can regulate the turbine discharge and the flow direction and thus make the water flow into the runner circumferentially and symmetrically. Consequently, the runner revolves and converts hydraulic energy into mechanical energy and then drives the rotor of the generator revolve by the force of the main shaft of the hydraulic turbine, thus converting the mechanical energy into electrical energy. The water, which has gotten out of the runner, flows to the downstream of river through the draft tube.
Because of the restoration of the draft tube, the energy of the water flowing out of the outlet, is partly reused, thus loss is reduced and efficiency is improved,



Main structures of the hydraulic turbine are described in the following.

  • Draft tube assembly
  • Rotating parts assembly

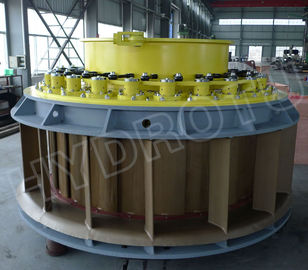

  • The distributor assembly

Applications:



1.     Water head:  2m -- 70m

2.      Power: 100KW -- 30000KW

3.     Frequency: 50/ 60hz

4.     Generator Output  voltage class: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,



If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Specifications:



Type

Kaplan with fixed blades/Kaplan with movable blades

Water head

 2m -- 70m.

Installation capacity

100KW --30000KW

Runner blades material

Stainless steel (0Cr13Ni4Mo)

Generator type

Synchro generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system





Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.



With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.



HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

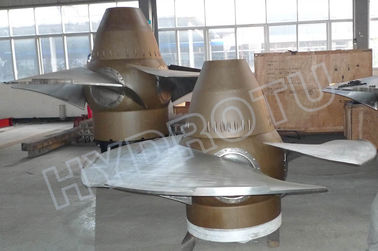

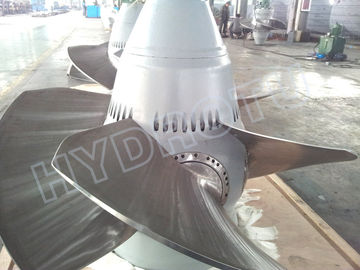

Runner Blades CNC machining



Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades 0



Low Water Head Full Kaplan Hydro Turbine With Double Adjustable Blades 1
