Product Details:
|
| Type: | Kaplan Turbine | Runner Diameter: | Below 2m |
|---|---|---|---|
| Blade Material: | Stainless Steel 0Cr13Ni4Mo | Guide Vanes Material: | ZG20SiMn |
| Runner Blade Angle: | 15° - 30° | Control System: | Hydraulic Governor |
| Capacity Of Alternator: | 100KW To 1000KW |
Our Kaplan Hydro Turbine is a vertical type hydro turbine that is designed to operate with water heads ranging from 2m to 25m, making it suitable for a wide range of hydro power generation applications.

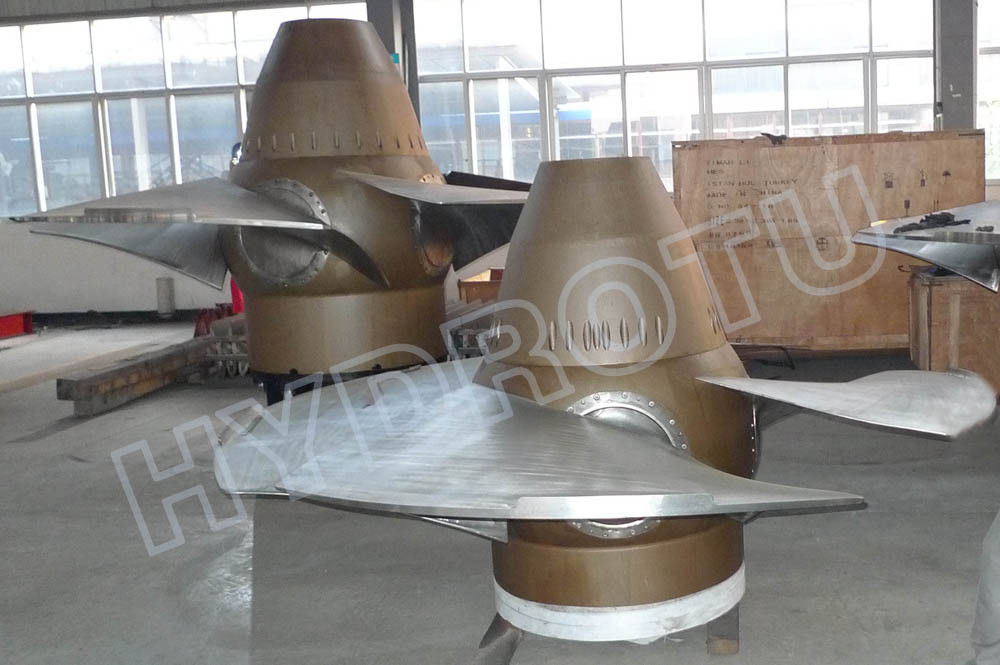

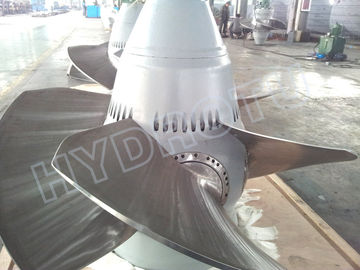

Our hydro turbine features a propeller type runner with adjustable blade angles between 15° and 30°, allowing for optimal performance and efficiency.
the Kaplan Hydro Turbine is capable of delivering reliable and consistent power output.
The housing of our hydro turbine is made of high-quality carbon steel, ensuring durability and longevity even in harsh operating conditions.
Our Kaplan Hydro Turbine is available with either a governor or electronic controller control system, allowing for precise and flexible control of power output.
Whether you need a powerful hydro turbine for a large-scale power generation project or a smaller unit for a remote off-grid application, our Kaplan Hydro Turbine is the perfect choice.
Choose a hydro turbine that you can rely on - choose the Kaplan Hydro Turbine from our product line today.
Additional Keywords: Kaplan Water Turbine Generator, Vertical Type Hydro Turbine, Kaplan Water Turbine Generator
| Product Attribute | Technical Parameter |
|---|---|
| Product Name | Kaplan Waterwheel Turbine |
| Turbine Type | Adjustable Blade Hydro Turbine |
| Turbine Design | Vertical Type Hydro Turbine |
| Housing Material | Carbon Steel |
| Hub Material | Carbon Steel |
| Blade Material | Stainless Steel 0Cr13Ni4Mo |
| Runner Diameter | Below 2m |
| Runner Blade Angle | 15° - 30° |
| Water Head | 2m-25m |
| Capacity Of Alternator | 100KW To 1000KW |
| Voltage | 6300V |
| Control System | Governor Or Electronic Controller |
| Brake Mode | Oil Braking (with Flywheel) |
The HYDROTU Kaplan turbine is suitable for use in small and medium-sized power plants with a runner diameter of below 2m. It is an ideal solution for power generation in mountainous areas, where there is abundant water supply, but the terrain is not suitable for other types of power generation. The HYDROTU Kaplan turbine is also suitable for use in irrigation systems, pumping stations, and other water resource projects.
The HYDROTU Kaplan turbine is available with governor control or electronic controller, which ensures stable and efficient operation. The oil braking system with flywheel provides a reliable and safe braking mode. The runner blade angle of 15° - 30° combined with the stainless steel 0Cr13Ni4Mo blade material ensures high efficiency and durability.
Overall, the HYDROTU Kaplan turbine is a versatile and reliable option for power generation in various applications. Its high efficiency, easy installation, and low maintenance requirements make it an excellent choice for those looking for a cost-effective and sustainable energy solution.
HYDROTU offers product customization services for the Kaplan Hydro Turbine, a type of Vertical Type Hydro Turbine. The model number for this product is Kaplan turbine and it originates from CHINA.
The Kaplan Hydroelectric Unit comes with adjustable blades that have a runner blade angle of 15° - 30°, made of Stainless Steel 0Cr13Ni4Mo. The brake mode for this turbine is Oil Braking (with Flywheel) and the hub material is Carbon Steel.
