High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project

China High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project supplier
High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project supplier High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project supplier High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project supplier High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project supplier High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project supplier

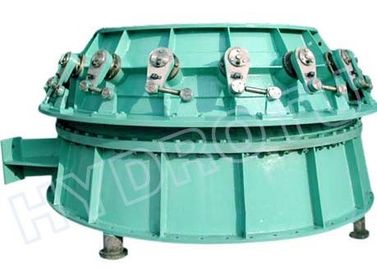

Large Image :  High Efficiency Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Hydrotu
Certification: CE
Model Number: Horizontal kaplan turbine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Turbine Type: S Type Tubular Turbine Water Head: 5m-25m
Capacity: 100KW-2000KW Runner Blades Material: Stainless Steel

High Efficiency  Hydro Turbine S Type Turbine for Heads 2m - 20m Hydropower Project



Specifications:

Type

S type turbine with fixed blades/ movable blades

Water head

2m -- 20m.

Installation capacity

0.1MW -- 10MW

Runner blades material

Stainless steel (0Cr13Ni4Mo)

Generator type

Synchro generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system







Descrition:



S type turbine is suitable for heads from 2m to 20m and large discharge hydropower station.

S-type tubular turbine is Available in versions of Horizontal Kaplan, also called S-type horizontal Kaplan. lts feature is that the water flow is axial throughout the passage from the inlet to the outlet, so that the passage is a straight conduit essentially.The turbine shaft passes out of the tube at the point where the tube changes direction, installation is ether with the transfer belt or directly connected to the generator. This modern turbine is characterized by high efficiency in a broad band of flow rates.

S-type turbine is also consist of fixed runner blades and movable runner blades.



Applications:



1.     Water head: 2m -- 20m

2.      Capacity: 0.1MW -- 10MW

3.     Runner diameter: 0.4m -- 5m

4.     Frequency: 50/ 60hz

5.     Output Type: 0.4KV, 3.3KV, 6.3KV, or 10.5KV AC three phase,



If you are interested in the Kaplan turbine, you should have some key parameters (such as net head, flow discharge, unit number, frequency, voltage) in inquiry.



Competitive Advantage:



HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.


HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.
