500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner

China 500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner supplier
500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner supplier 500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner supplier 500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner supplier 500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner supplier

Large Image :  500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner

Product Details:

Place of Origin: Zhejiang,China
Brand Name: Hydrotu
Certification: CE
Model Number: Pelton water Turbine

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wooden Case( Export Standard Package)
Delivery Time: Negotiable
Payment Terms: L/C,T/T
Contact Now
Detailed Product Description
Rated Speed: 750 Rpm Rated Efficiency: 90.0%
Output Power: 0.5MW - 20MW Water Head: 80m - 800m
Type: Horizontal / Vertical Pelton Turbine Runner Material: Stainless Steel (0Cr13Ni4Mo)

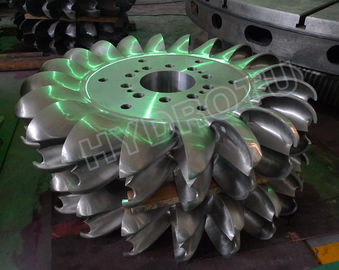

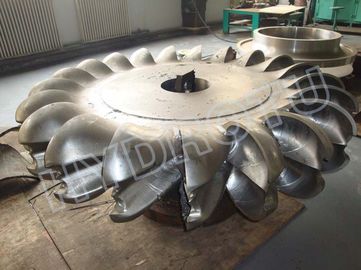

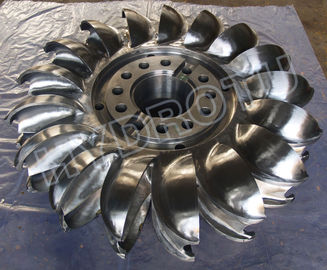

500m High Head Pelton Turbine Runner With forged CNC machining runner and  two Nozzles

Pelton turbine basic parameter:
Pelton turbine type: CJA475-W-123/2x10
Gross water head: 550m
Design Head: 529.0m
Design flow: 1.4m3/s
Install altitude: 590m
Rated capacity: 6539KW(two unit operation); 6638KW( one unit operation)
Rated efficiency: 90.0%
Rated speed: 750 rpm
Runaway speed:1354rpm
Runner material: ASTM A473 S41500 forged ans CNC machined.


Descrition:
The Pelton turbine is widely used in hydropower station with the heads 80-800m.
Pelton turbine is consisted of pelton runner, turbine case, nozzles assembly, inlet pipe, deflector etc. The runner is assembled in the shaft of the generator, torque transmission by ping.
lt utilizes the dynamic power of high pressure water flow to rotate the runner and force the rotor work, The centre line of the jet is in the same plane as the runner while rotating.
Pelton turbine has the advantages of compact construction, stable running and easy operation. Normally, Small pelton turbine always arranged with horizontal shaft and one or two nozzles, Medium size and larger Pelton turbines are most often arranged with vertical shaft, and equip four or six nozzles to obtain more power.


Applications:

1. Water head: from 80m ~ 800m

2. Power: 0.5MW ~ 20MW

3. Frequency: 50/ 60HZ

4. Generator Output voltage: 400V, 6.3KV, or 10.5KV AC three phase,
We can supply pelton turbine generator above 500KW, supply the runner with Forge and CNC machine, or runner with cast abrading machine for your require.
If you are interested in the Pelton turbine, you should send some key parameters (such as net head, flow discharge, install altitude , unit number, frequency, voltage) in inquiry.



Specifications:

Type

Horizontal pelton turbine with one /two nozzles
Vertical pelton turbine with four nozzles

Water head

80m - 800m.

Installation capacity

0.5MW - 20MW

Runner material

Stainless steel (0Cr13Ni4Mo)
Cast machine/Forge + CNC machine

Generator type

Synchronous generator

Auxiliary Equipment

Governor, Inlet Valve, unit side panel, excitation system


Competitive Advantage:

HYDROTU is the complete Chinese hydropower equipment supply, consulting and engineering design venture in the field of hydropower equipment. We provide the high quality Chinese hydropower equipment with advanced technologies and integrated services to meet the global hydropower markets.


With our Integrated Services concept, we provide you with customized support from project planning through implementation to plant commissioning and service. Our principle: Customer’s project is our project , customer’s success is our success.

HYDROTU covers the services, complete equipment supply, economic solution of the global hydropower projects and aims to be the best global supplier of hydropower equipment as well as the best integrated services provider on the hydropower markets.

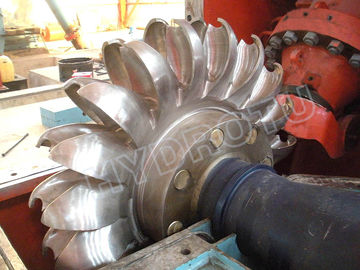

Pelton water turbine assembly

500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner



500m High Water Head Turgo Hydro Turbine With Two Nozzles And Forged CNC Machining Runner
